PRISONswitch

Engineered for musicians who demand reliable remote control and clear status feedback for their amplifier's built-in effects circuits. PRISONswitch simultaneously engages or disengages onboard tremolo and reverb while giving immediate visual confirmation during performance.

Tremolo Reverb OLED status ESP32-S3

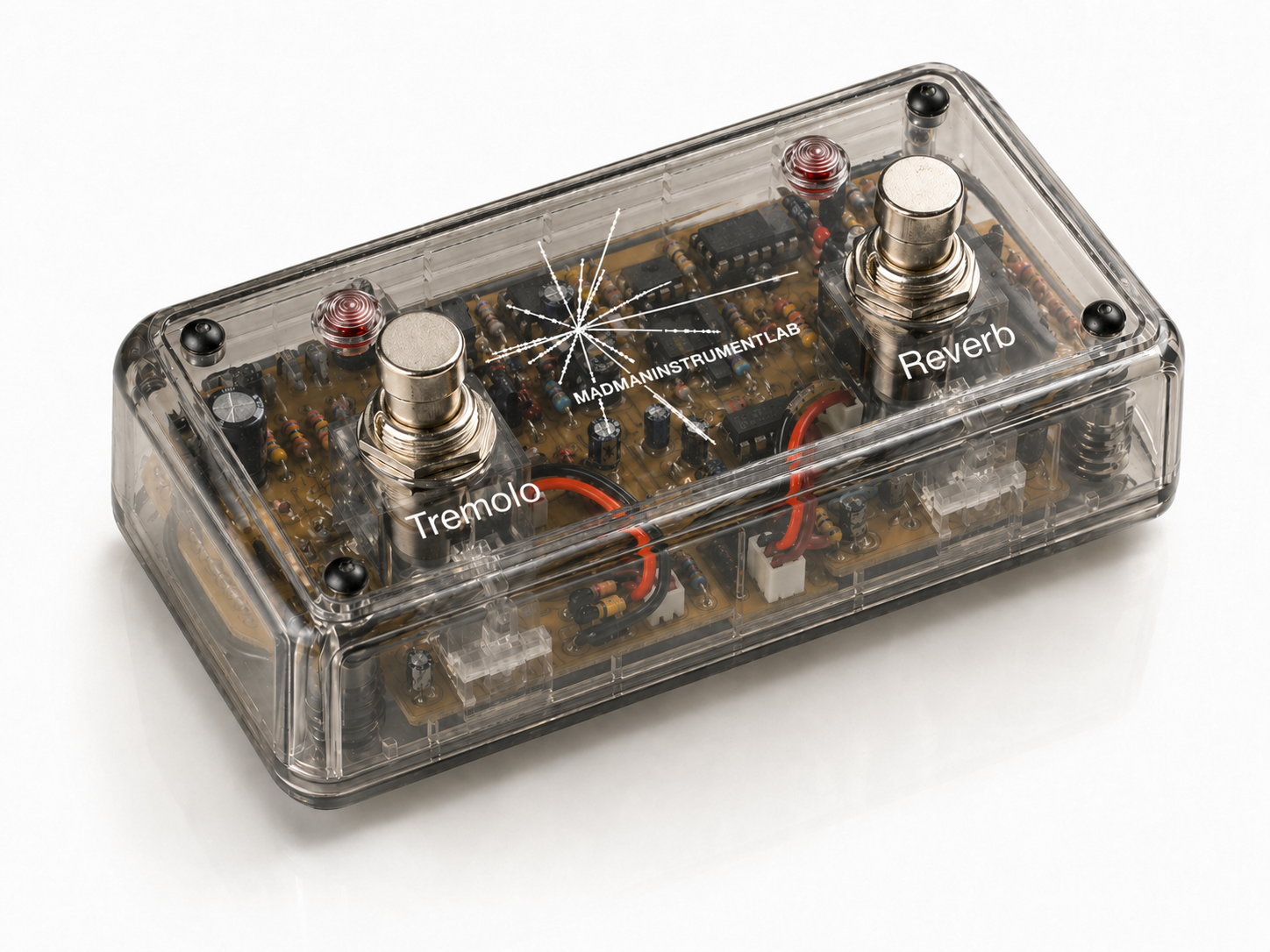

Prison Switch transparent dual footswitch pedal with Tremolo and Reverb labels. — Product render / transparent enclosure prototype

Status

Prototype Footswitch Digital Control

Switch Operations

Hold / On-Off / Expression

A robust dual-switch architecture independently controls two effect circuits, with potential double-click support for new modes.

Monitoring

Pedal Statistics

Hold both switches down to view pedal statistics, including switch count and held-time behavior.

Microcontroller

ESP32-S3 Platform

Built around the Xtensa® 32-bit LX7 dual-core microprocessor with 2.4 GHz Wi-Fi and Bluetooth® 5 LE.

Core Functionality

Control Beyond Basic On-Off

Switch operations: supports hold, on-off, and expression functionality, with a potential double-click feature for new modes.
Performance monitoring: hold both switches down to view pedal statistics, including how many times the pedal has been switched or how long it has been held.
Microcontroller power: ESP32-S3 family architecture showcases advanced microcontroller skills and future-proof wireless integration.
Easter egg: hold the switch for 10 seconds to discover the hidden strobe effect.

Prison Variant Design Ethos

Sophisticated, No-Blinking Aesthetic

Transparent housing: the flagship Prison variant uses a completely clear acrylic housing that exposes the internal digital circuitry and mounted components.
Premium materials: the enclosure is accented with brushed metals and set in brushed steel screws.
Visual feedback: status is provided discreetly through a transparent 1.51-inch blue OLED screen with 128x64 resolution and SSD1309 driver chip.
Profile: designed with a low, flat profile.

Technical Specifications

Hardware Targets

Power Input	9V or 12V standard pedal power supply, center negative
Target Power Draw	Targeting 200mA maximum current consumption
Microcontroller	Xtensa® 32-bit LX7 dual-core microprocessor (ESP32-S3 family)
Display	Fermion 1.51-inch OLED transparent display (blue, 128x64 pixels)
Connectivity	1/4-inch mono TS or TRS cable compatibility
Durability	Designed to withstand a 30-year lifecycle based on typical band usage
Warranty	15-year warranty

Target Audience

Guitar Pedal Enthusiasts

Built for gear heads seeking high-quality effects, unique aesthetic design, premium build quality, and exclusive digital features.

Target Audience

Home Studio Producers

Designed for players and producers who appreciate digital control, clean status feedback, and portfolio-level microcontroller architecture.
